Mini Beacon



Family Model Number Beam Pattern SPL Survival Depth
Micro 1329A ±90° 183dB 600m
Micro 1329D ±90° 183dB 600m

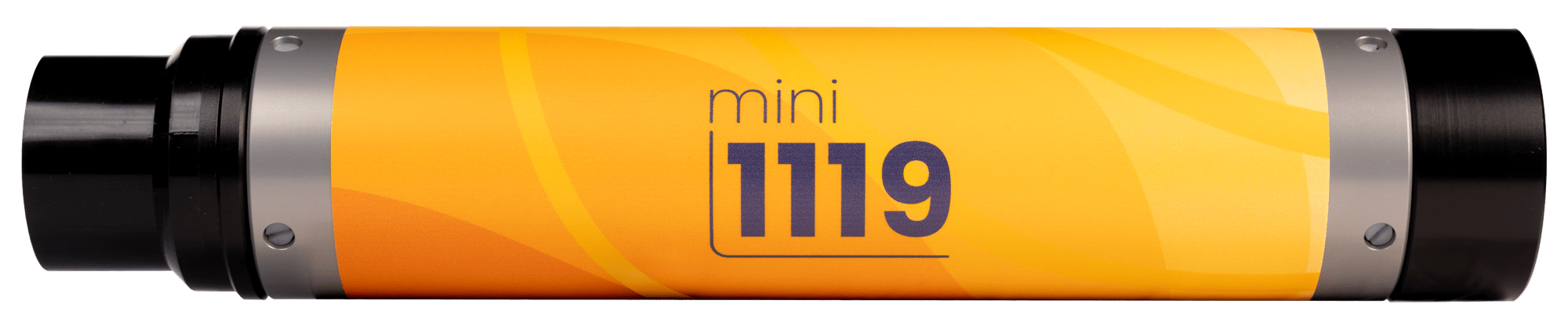

Mini 1119 ±90° 188dB 1500m
Mini 1113H ±30° 196dB 2000m
Midi 1139 ±90° 191dB 4000m
Midi 1133H ±30° 200dB 4000m
Fatboy 1162 ±15° 206dB 4000m
Seabed 1159 ±90° 191dB 4000m
Seabed 1153H ±30° 200dB 4000m



Applied Acoustics’ range of acoustic positioning beacons is one of the most extensive available from any manufacturer and includes very small models, the Micro Beacons, for use in shallow water or where space is limited, up to the Seabed Beacons operating in deep, noisy or difficult environments.

The range offers a host of benefits for a multitude of marine positioning applications, with models specifically designed for challenging tasks during subsea operations. Each unit combines durability with ease of use.

For true versatility and cost-effectiveness, every beacon in the range has been designed to be immediately compatible with almost all industry standard tracking systems operating worldwide. Additionally most beacons can operate as a Transponder, an acoustic beacon which transmits on receipt of an acoustic interrogation pulse, a Responder, an electrically triggered acoustic beacon or a Pinger, which regularly transmits acoustic signals until the power supply is exhausted.



In addition to a particular features that allow the operator to create an optimum balance between power, battery life and physical characteristics, all medium frequency positioning beacons include Sigma spread spectrum protocols and most also have integrated MiQ data telemetry and Multi-Fire common interrogate capabilities.



Key Features
  • Robust, rugged construction
  • Easy selection of transmit and receive frequencies (channels)
  • High reputation for signal stability
  • Rigorously tested for distinguished endurance and performance



Standard Products

Micro Beacons: Small sized, ideal for divers, short ranges and small ROV’s

Micro Beacons


Mini Beacons: ‘Work-horse’ beacons for towfish and ROV tracking, often used by divers, too

1000 Series Mini Beacons

1100 Series Mini Beacons


Midi Beacons: High powered, but compact. Used for long range towfish tracking and AUV positioning

Midi Beacons


Fatboy Beacons: Ideal for deep water ROV’s and AUV’s

Fatboy Beacons


Low Frequency Beacons: Long range, deep water applications

Low Frequency Beacons


Seabed Beacons: Large battery capacity for long term deployment often used as reference markers

Seabed Beacons


V-Nav: Acoustic Positioning System

V-Nav Acoustic Positioning System


Beacon Testers & Chargers: Accessories to complete your system

Beacon Testers & Chargers
