Mini Beacons have been developed to give extra versatility to the beacon range. Although designed for use with Easytrak USBL systems, these beacons are compatible with many other USBL tracking systems.

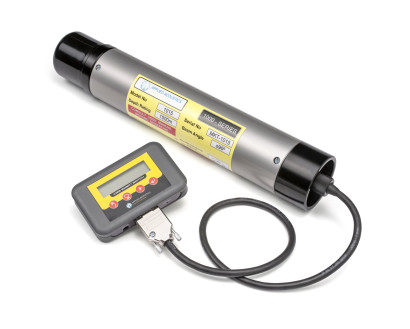

Featuring the industry standard 5-pin connector, they are quick and easy to configure using the 1082 Smart Switch.

The beacon has an onboard fast charger for a typical 3 hour charge time.



Key Features

- Spread Spectrum Technology

- Directional or omni-directional beam pattern, depending on the application

- Configurable for use as Transponder, Responder and Pinger

- Quick and easy configuration

- On board fast charger

- Telemetry option for confirmation of accurate beacon depth (D suffix)



Model Selection

Model Number Beam Pattern SPL Survival Depth
1015 +/- 45° 194dB 2000m
1015H +/- 30° 196dB 2000m
1019 +/- 90° 188dB 1500m
1022 +/- 20° 202dB 4000m



Compatibility

Compatible with Easytrak Nexus Spread Spectrum and other wide bandwidth USBL systems worldwide, including legacy support for existing tone burst channels



Typical Applications

- General purpose tracking and positioning applications

- Diver tracking

- Static and dynamic operations (small ROV, sidescan sonar, etc.)



Resources

Mini 1000 Series Data Sheet

Brochure
