Micro Beacon



The 1300 Series Micro Beacon has been redesigned to be a versatile product with better battery life and improved acoustic protocols for diver and ROV operations.

The beacon as standard now includes a 600m depth sensor to aid in positional accuracy and is ideal for use in shallow water environments. Channel selection is via an USB adaptor cable and beacon editor application.



Key Features

  • Sigma 2 technology for improved positioning with aae USBL Systems
  • Channel configuration via Beacon Editor app
  • Legacy support for older USBL systems
  • Multi-Fire common interrogate functionality
  • Depth Telemetry available
  • Automatic Pressure Release Valve (PRV)



Model Selection

Model Number Beam Pattern SPL Survival Depth

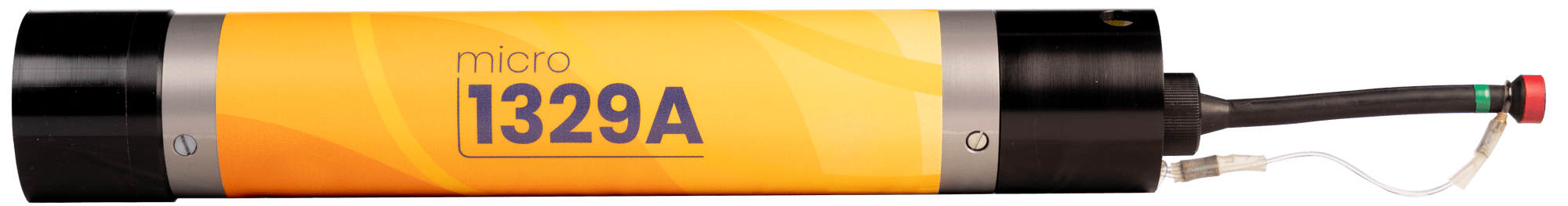

1329A ± 90° 183dB 600m
1329D ± 90° 183dB 600m



1320 Beacon   RM91S Remote Head

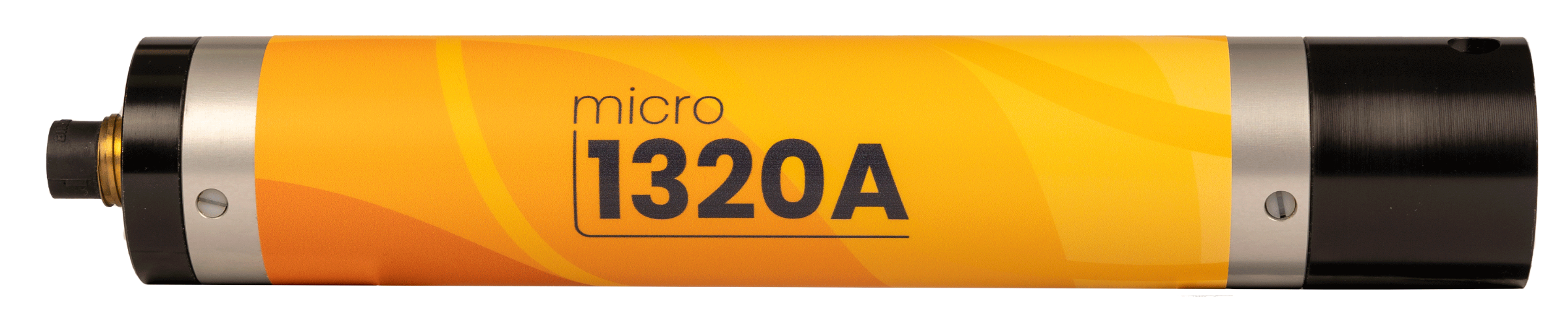

The 1320A Micro Beacon with a remote transducer head expands the versatility of the Micro Beacons. The transducer is placed away from the electronics housing and attached by an interconnect lead. This arrangement is ideal where space is limited or the transducer needs mounting away from noise sources such as ROV thrusters.



Remote Option Selections

Model Number Beam Pattern SPL Survival Depth
1320A N/A N/A 1000m
1320D N/A N/A 600m

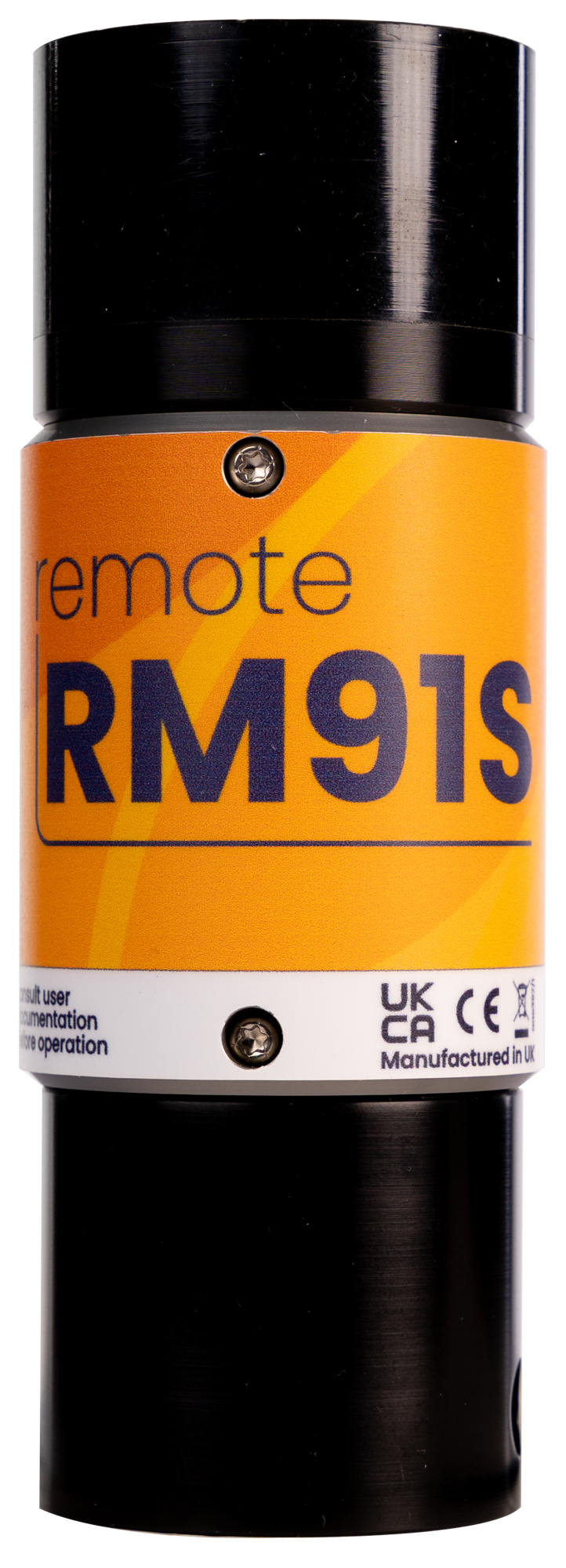

RM91S ± 90° 183dB 1000m
RM91SR ± 90° 183dB 1000m



Applications

  • General purpose tracking and positioning applications
  • Diver tracking
  • Static and dynamic operations e.g. ROV, and sidescan sonar
  • Inspection class AUV/ ROV tracking



Charging and Configuration



Battery Replacement







Resources

 1300A Data Sheet

 1320A with RM91S/SR Data Sheet
