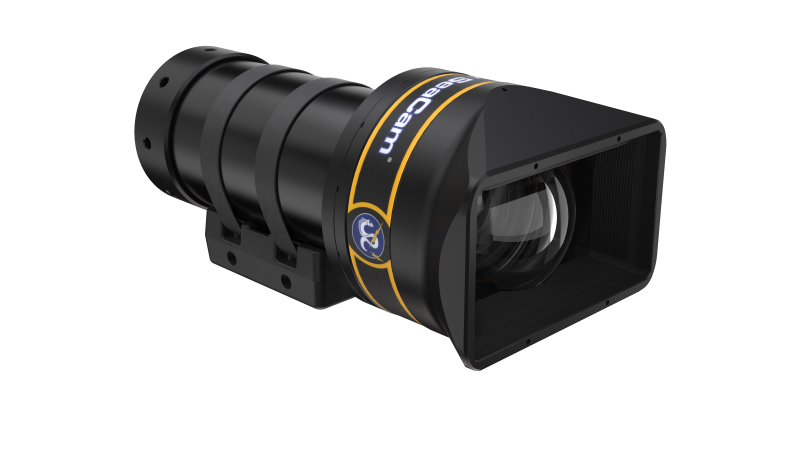

Vertex™ SeaCam®
The compact Vertex SeaCam has superior imaging performance with proprietary corrector optics. Features include full HD resolution with 10x optical zoom and low-distortion 80° HFOV at full-wide. A minimum faceplate illumination of 0.5 lux provides impressive low light capability.
This subsea camera works with RS-232 and RS-485 control interfaces through VISCA or SeaSense Protocol. Tristate control is available for zoom, focus, and auto focus features. The Vertex SeaCam is easy to integrate with fiber, coax, and FleXlink output method options. Configuration options include aluminum housing with 6,000 m depth rating and titanium housing with 11,000 m depth rating.
The Vertex SeaCam includes a mounting bracket with titanium inserts.
Key Features
The Vertex SeaCam features:
- Full HD Resolution
- 10x optical zoom
- 79° Horizontal FOV at Full Wide
- Proprietary corrector optics
- Fiber, coax, and FleXlink® output methods available
- SeaSense™ Protocol and VISCA serial control available for RS-232 and RS-485
- Tristate zoom, focus, and auto focus controls
- 6,000 m depth rating with 11,000 m Titanium option
Resources:
Product Drawing - IGS (.zip - 3.45 MB)
Product Drawing - SLDPRT (.zip - 4.61 MB)
Product Drawing - STEP (.zip - 4.47 MB)
Product Drawing - X_B (.zip - 1.54 MB)
