FleXlink®
DeepSea Power & Light's exclusive FleXlink technology is a cost-effective and robust alternative to coaxial and fiber optic interconnects in subsea HD and 4K/UHD video transmission. FleXlink uses reliable unshielded twisted pair (UTP) conductors and readily available Ethernet-type interconnectors to reduce infrastructure cost and solve common problems with subsea HD/4K camera integration.
The core of the FleXlink technology is a proprietary cable driver that adapts the SDI signal for a UTP high-speed signal path. A suitable camera configured with a FleXlink driver transmits HD-SDI or 3G-SDI video through up to 10 m of subsea cable. Up to two of the pairs can be combined for a Dual Link 3G-SDI configuration capable of supporting full 4K resolutions. A media converter recovers the SDI signal in its original format without needing decompression or adding latency, and outputs a standard SDI coax or fiber optic signal. The end-to-end FleXlink system meets the rigorous SMPTE 292M and SMPTE 424M HD broadcast video standards and the proposed SMPTE ST 425-3 4K Dual Link specification.

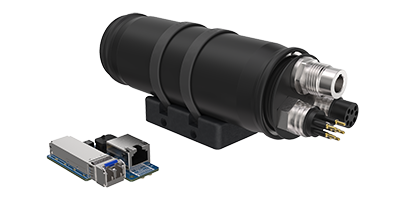

The FleXlink Media Converter Board (MCB) uses widely available Small Form-factor Pluggable (SFP) video output modules with either coax or fiber optic outputs. Changing between CWDM laser wavelengths on an MCB is as simple as swapping out the SFP module. We can even offer the MCB as an OEM component for integration in existing housings or in our 6km rated FleXlink housing.
FleXlink makes integrating HD or 4K imaging capability easy and cost effective. Versatile UTP cables facilitate deployment of HD imaging systems where cyclic flexing or tight bends make both fiber and coax inadvisable. Operators can further reduce total system cost by leveraging the same spare Ethernet component inventories maintained for sonar and other high-speed digital systems.
Key Features
FleXlink features:
- 1080p HD and 2160p 4K SDI video over robust subsea UTP interconnects
- Works with CWDM optical multiplexers
- Native uncompressed SDI signals add no glass-to-glass latency
- Leverages existing SDI vehicle and top-side infrastructure
- Compatible with SMPTE 292M HD-SDI, 424M 3G-SDI, and ST 425-3 Dual Link 3G (4K) standards
