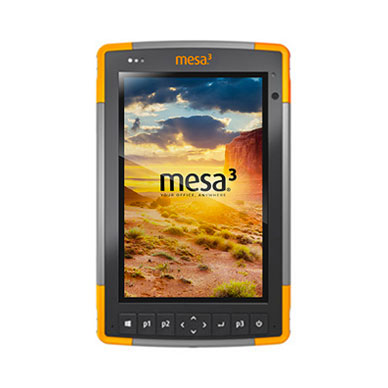

Mesa Rugged Tablets



For Professionals in the Most Extreme Environments

From thick forests to oil refineries, Juniper Systems’ rugged tablets are used across the globe in the most extreme environments imaginable for reliable data collection. Built rock solid and field ready, Juniper Systems is on a mission to provide the ultimate experience for in-the-field professionals.

• Waterproof, dustproof, shockproof
• Extreme temperature endurance
• Ergonomic design for minimal user fatigue
• All-day battery life
• Large 7’’ sunlight-readable display
• Racing-fast processor options
• Designed and assembled in the United States
• Live and individualized customer support
• Customizable
• Optional Class 1, Div 2 certification for hazardous locations



Running a full Windows 11 or Android 9.0 operating system, Mesa Rugged Tablets carry out the entire data collection process with ease from start to finish. Snap a photo, record field notes, capture a GNSS location, and analyze data – all in the palm of your hand. Its racing-fast processor and ergonomic design ensure maximum efficiency and minimal fatigue. With all the functionality of a desktop computer packed into one ultra-tough tablet, the Mesa Rugged Tablet will truly become your office, anywhere.











	MESA 3 ANDROID	MESA 4 WINDOWS
Processor	Qualcomm® Snapdragon™ Octa-core Kryo™ 260	Intel® N200
Operating System	Android 9.0 (GMS)	Full Windows 11 Professional
Memory	6 GB LPDDR4x	8 or 16 GB LPDDR4
Storage	64 GB eMMC Flash Storage	128 or 256 GB NVMe SSD Storage
Graphics	Qualcomm® Adreno™ 512 GPU	Intel® Gen12 UHD Graphics
Wireless Connectivity	Long-range Bluetooth® Smart Ready wireless technology, v5.0 + EDR, Class 1.5, BLE support Wi-Fi 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz 4G LTE, multi-carrier capable	Long-range Bluetooth® Smart Ready wireless technology, v5.3 + EDR, Class 1.5, BLE support  Wi-Fi 6(802.11 ax), 2.4 GHz and 5 GHz  and 5 GHz Wi-Fi 6E 4G LTE, multi-carrier capable
Ports	12V DC power input jack USB-C, USB 3.1OTG no battery charging x 1 Optional RS-232 9-Pin D-Sub connector with 5V DC or 12V DC power output Dock connector (Pwr, USB 2.0, HDMI, Ethernet) Loud output speaker for noisy environments Dual digital microphone input	12V DC power input jack USB-A (5 Gbps) USB-C (5 Gbps, power delivery, DisplayPort) Optional screw locking USB-C Optional RS-232 9-Pin D-Sub connector with configurable 5V DC or 12V DC power output Docking connector (Power, USB 2.0) Loud output speaker for noisy environments Dual digital microphone input
Camera Options	Rear 16 MP with LED illumination Front 2 MP	Rear: 13 MP with LED illumination Front 5 MP
GPS/GNSS	Standard Qualcomm SDR660 GNSS receiver and integrated antenna Integrated real-time SBAS receiver (WAAS, EGNOS, etc.) Supports GPS, GLONASS, Galileo worldwide; BeiDou & QZSS outside of U.S.	GEO Models 2 to 5 meter accuracy NSSDA Quectel LC79H Dual Frequency GNSS receiver and integrated antenna Integrated real-time SBAS receiver (WAAS, EGNOS, etc.) 135 GNSS tracking channels Optional: external antenna port
Certifications & Standards	FCC Class B CE Marking (applicable EMC, R&TTE, and LVD directives) Industry Canada EN62368 Safety RoHS 2 Compliant	FCC and ISED Certification (USA and Canada) FCC Class B and ICES-003 Class B (USA and Canada) CE Marking (EU Radio Equipment and RoHS Directives) Optional Class I, II, & III, Div 2, Groups A, B, C, D, F, G ACMA RCM (Australia) United States Toxic Substances Control Act (TSCA) California Prop 65 Canada Prohibition of Certain Toxic Substances EU REACH, EU POP, SCIP, WEEE SCIP WEEE





Resources:

 Data Sheet (Android)

  Data Sheet (Mesa 4 Windows)
