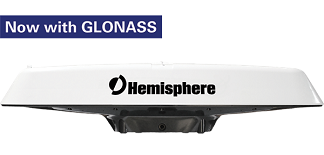

Now with GLONASS, the Vector™ V103™ and V113™ GNSS compass series is known for its superb heading and positioning performance. With the addition of GLONASS, the V103 and V113 now provides a more robust solution in critical areas where sky blockage occurs. The rugged IP69K design housing is sealed for the harshest environments. It incorporates fixed and pole mounting capability for both marine and land applications. The Vector V103 and V113 series is suitable for both dynamic positioning and professional marine surveys, along with many other challenging applications.

The V103 and V113 utilize all of the recent innovations in Hemisphere’s Crescent® Vector GNSS technology. New Cross-Dipole low-multipath antennas are separated by 50 cm between phase centers, resulting in better than 0.3° heading performance while delivering position accuracy of better than 30 cm when using SBAS or Beacon corrections.

The Vector V103 and V113 support both NMEA 0183 and NMEA 2000 interfacing, enabling a seamless choice of communication protocols with Hemisphere GNSS’ messaging. Crescent Vector technology delivers accurate and continuous performance, including position, heading, heave, pitch, and roll. The stability and maintenance-free design of the Vector V103 and V113 series replaces traditional gyrocompasses and stand-alone GPS at a fraction of the cost.



Data Sheet

Comparison Guide

User Guide



Contact us for pricing and availability today!


Related Products:

Junction Box for V103, V113, V320
