Brackets

MRD

 Line Drawing

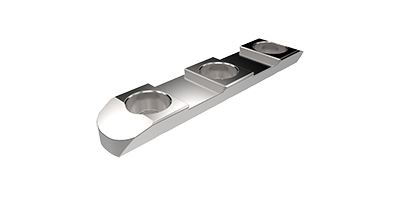

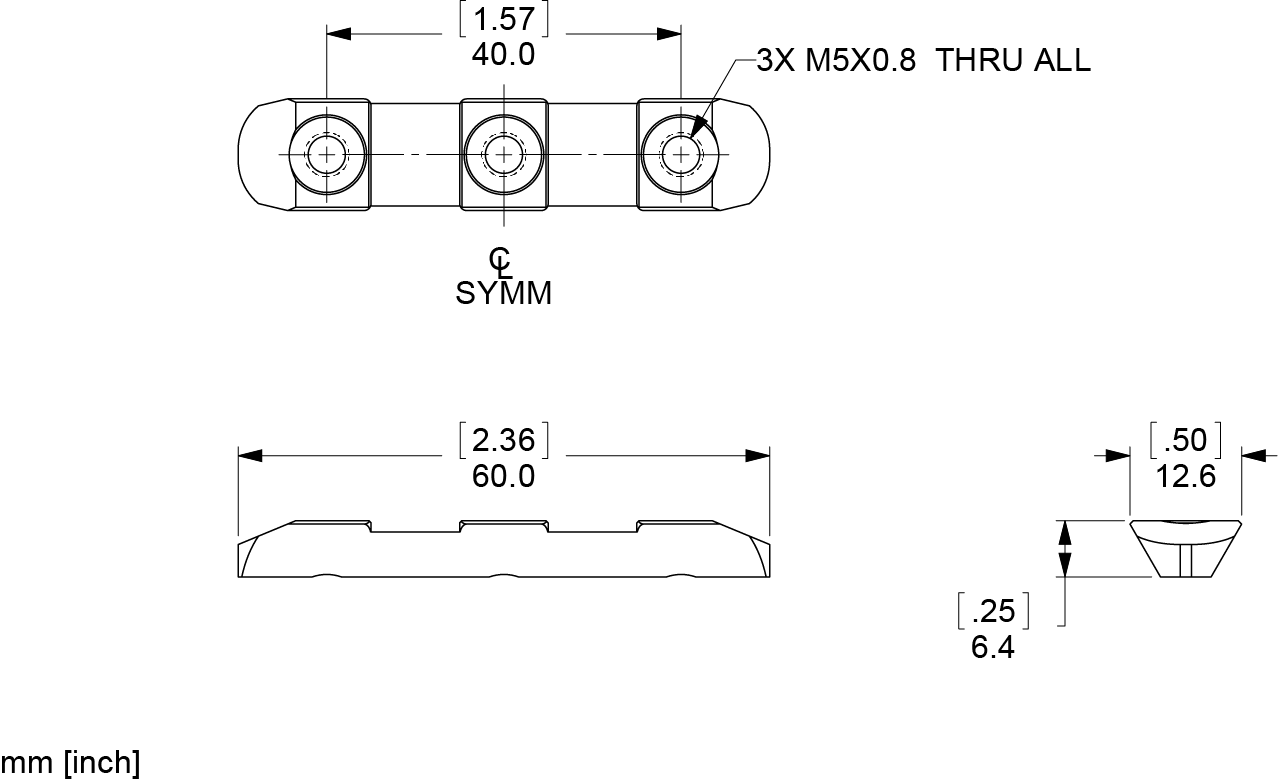

Metal rail dovetail used with the quick release mount.

---



QRM

 Line Drawing

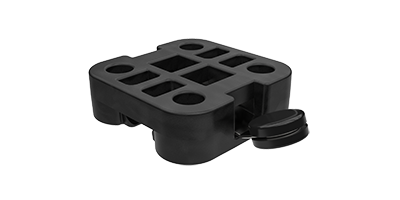

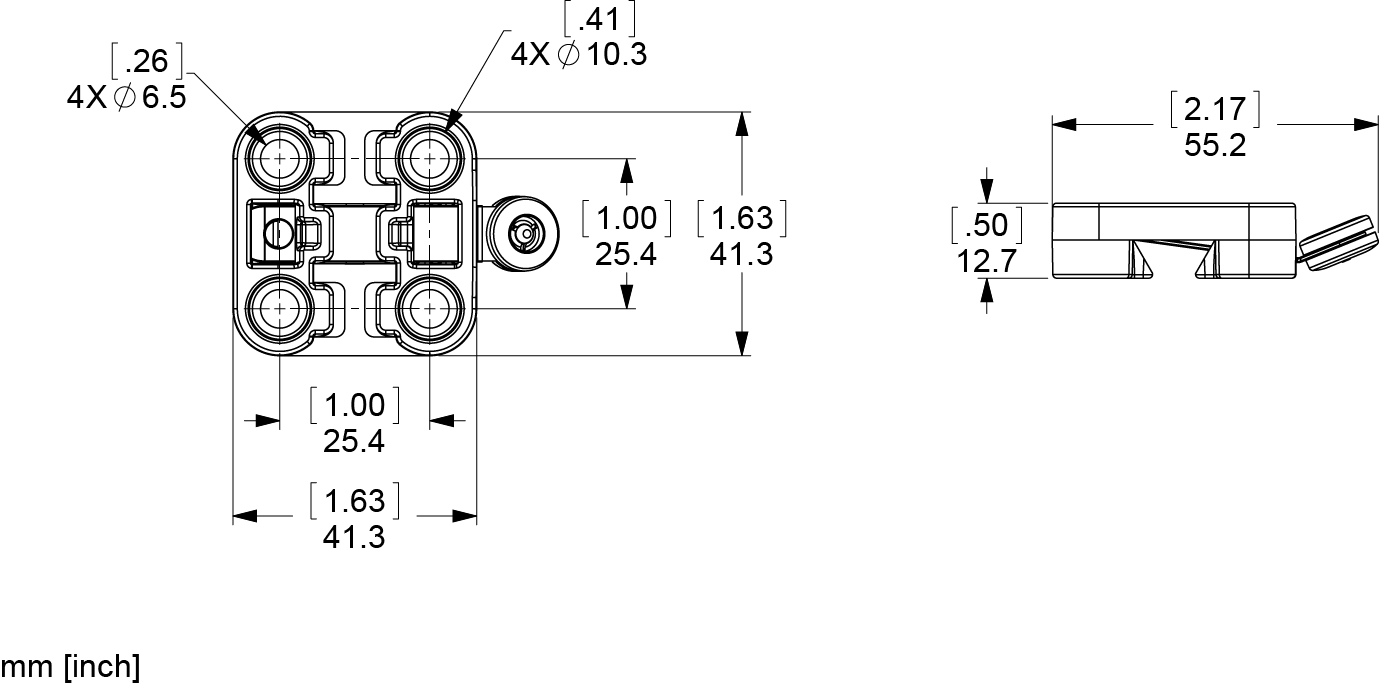

Quick Release Mount used with the metal rail dovetail.

---

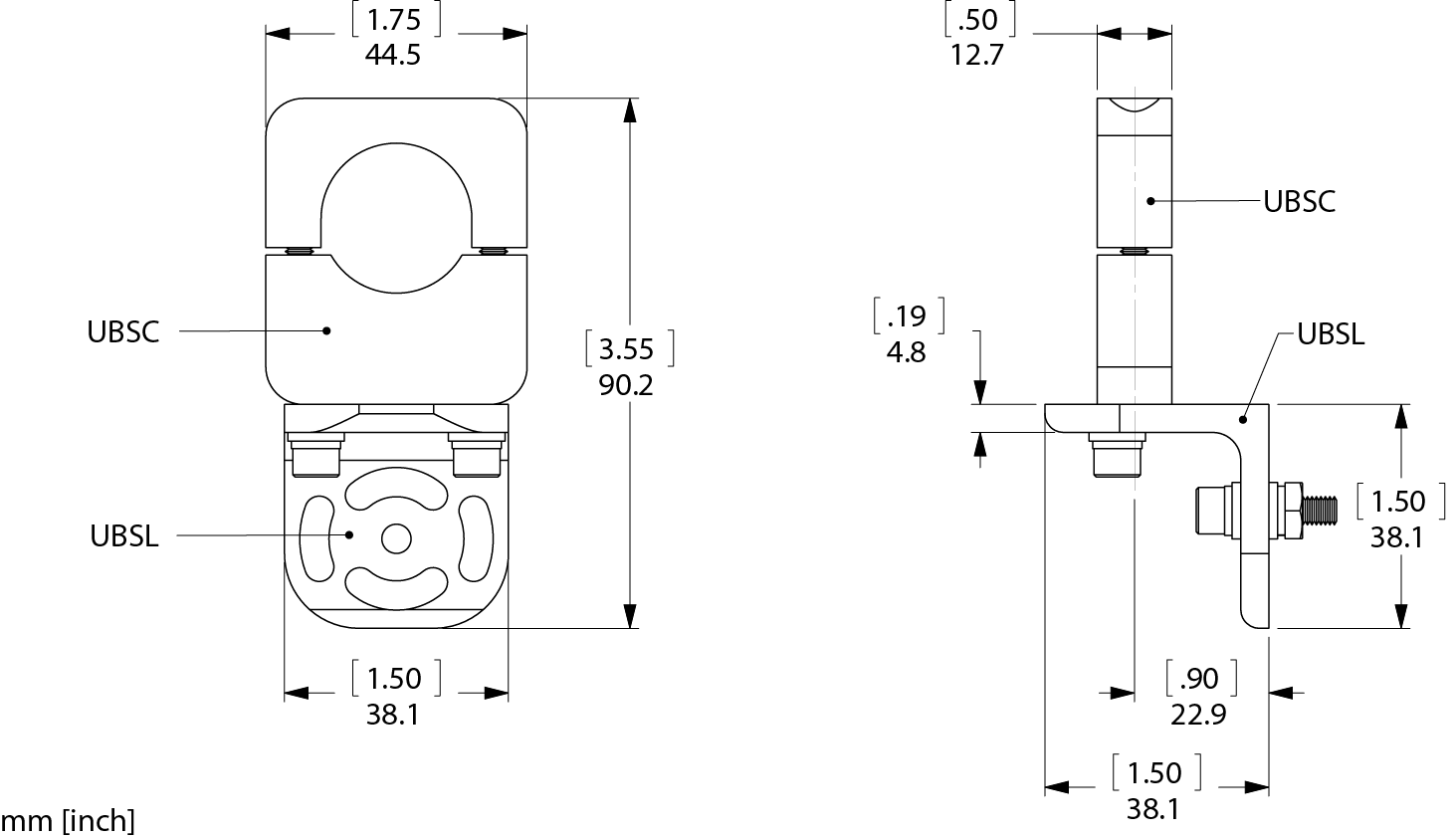

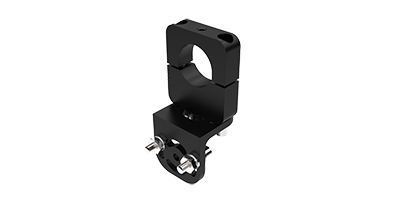

UBS

 Line Drawing

Universal mounting bracket assembly, small, includes UBSC, UBSL, and UBSH. Used with SeaLaser 100, Mini SeaLite, SeaLite.

---

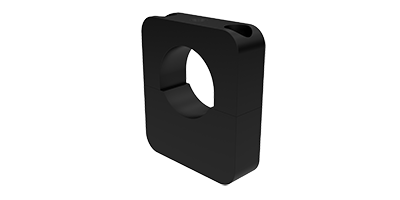

UBSC

 Line Drawing

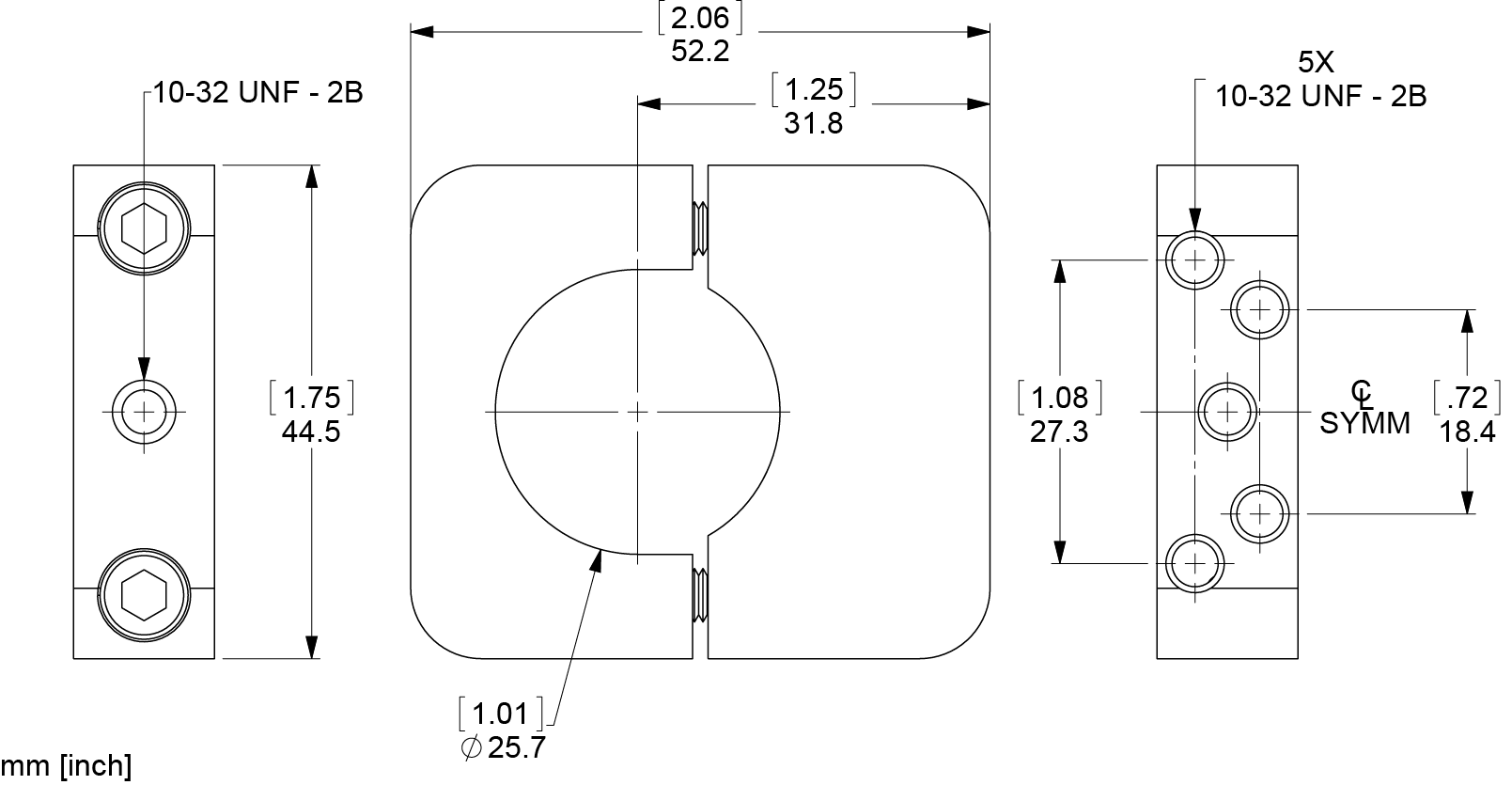

UBSC mounting collar, small. Used with Mini SeaLite, SeaLaser 100.

---



UBSL

 Line Drawing

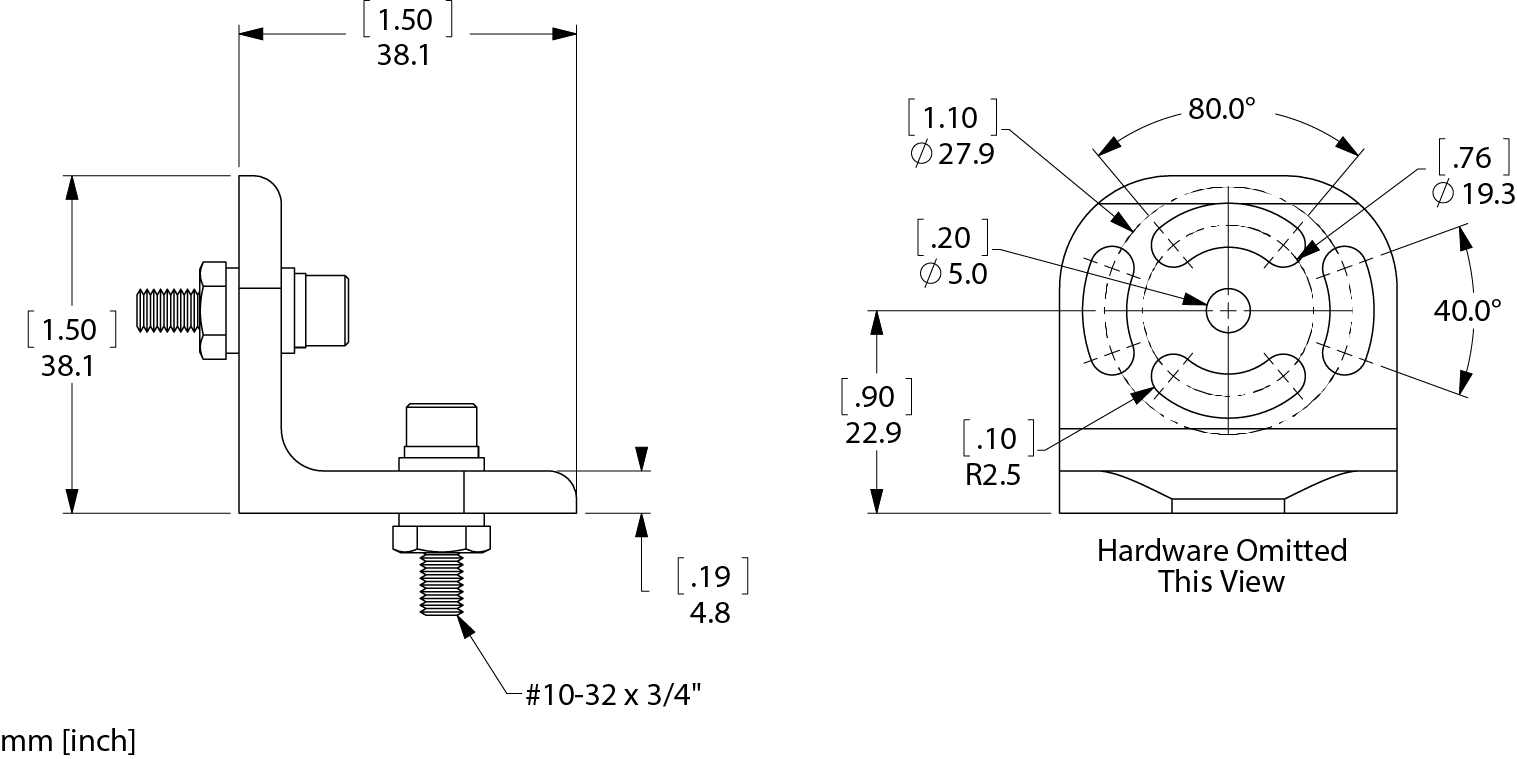

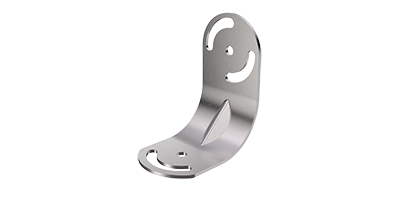

UBS mounting L-bracket, small or large, used in combination with the UBSC bracket.

---



UHG

 Line Drawing

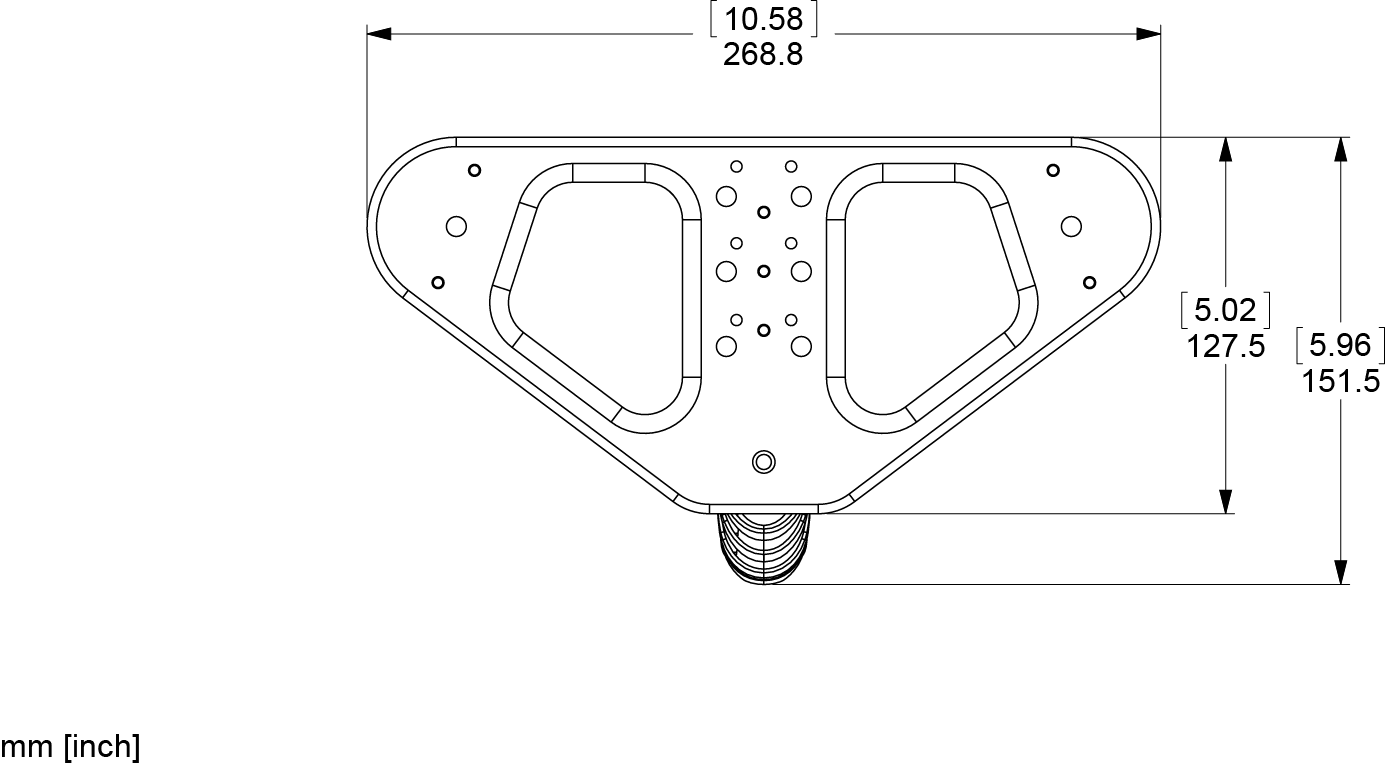

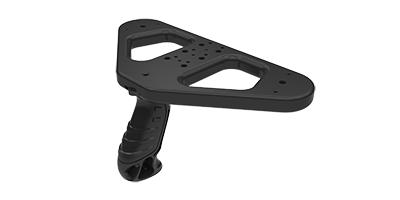

Universal hand grip used with most DSPL diver cameras and lights.

---

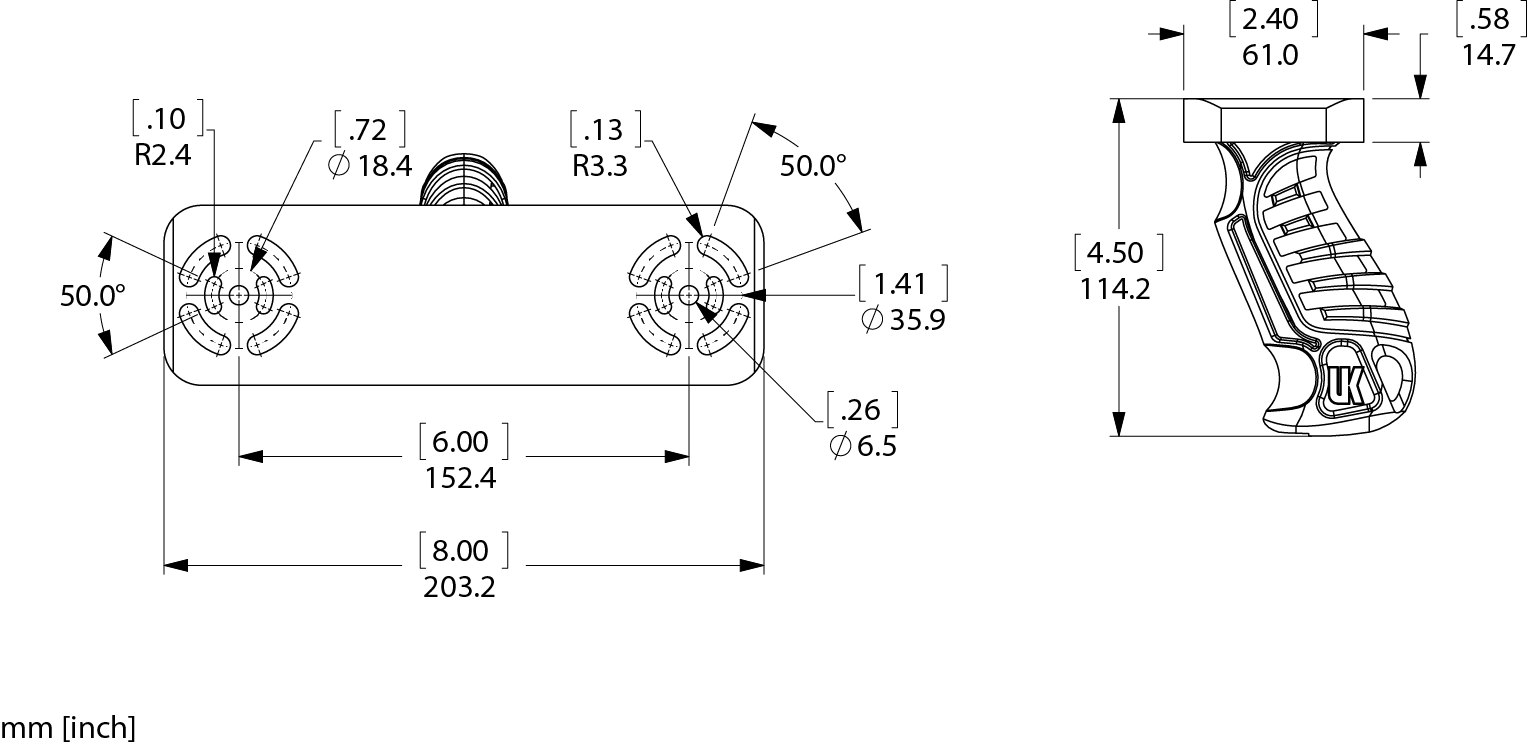

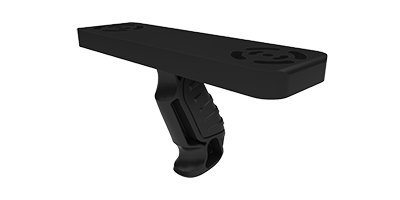

DVSHG

 Line Drawing

Universal hand grip used with most DSPL diver cameras and lights.

---



MSC-BRKT-M & MSC-BRKT-I

 Line Drawing

Metric: Multi SeaCam bracket with Titanium 6 mm Metric threads.

Imperial: Multi SeaCam bracket with Titanium ¼-20” threads.

---



SSC-BRKT

 Line Drawing

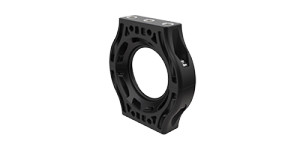

Mounting bracket for Super SeaCam and HD Zoom SeaCam.

---



ML-DMC

 Line Drawing

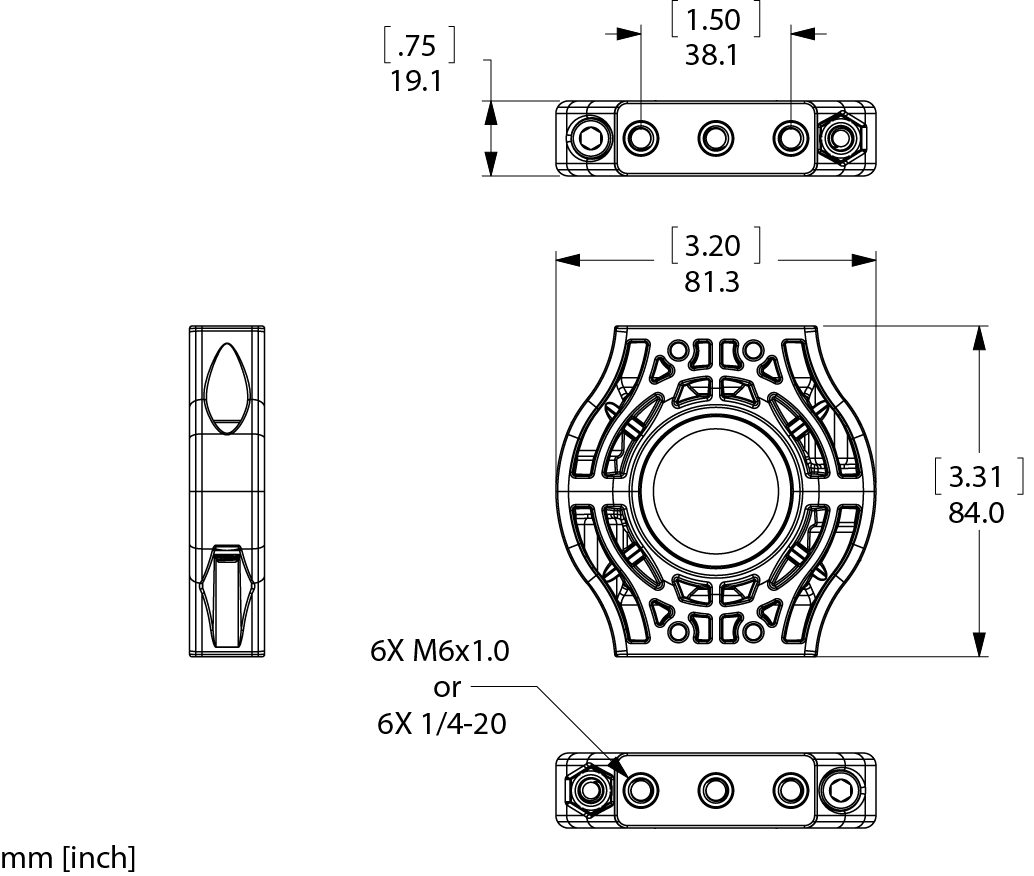

Legacy mounting bracket with stainless steel inserts used with all Multi SeaLite family of Halogen lights, LED Multi SeaLite, LED Multi SeaLite Matrix, and older version of SeaLite Sphere. Replacement is 2-piece mounting bracket with Titanium inserts.

---

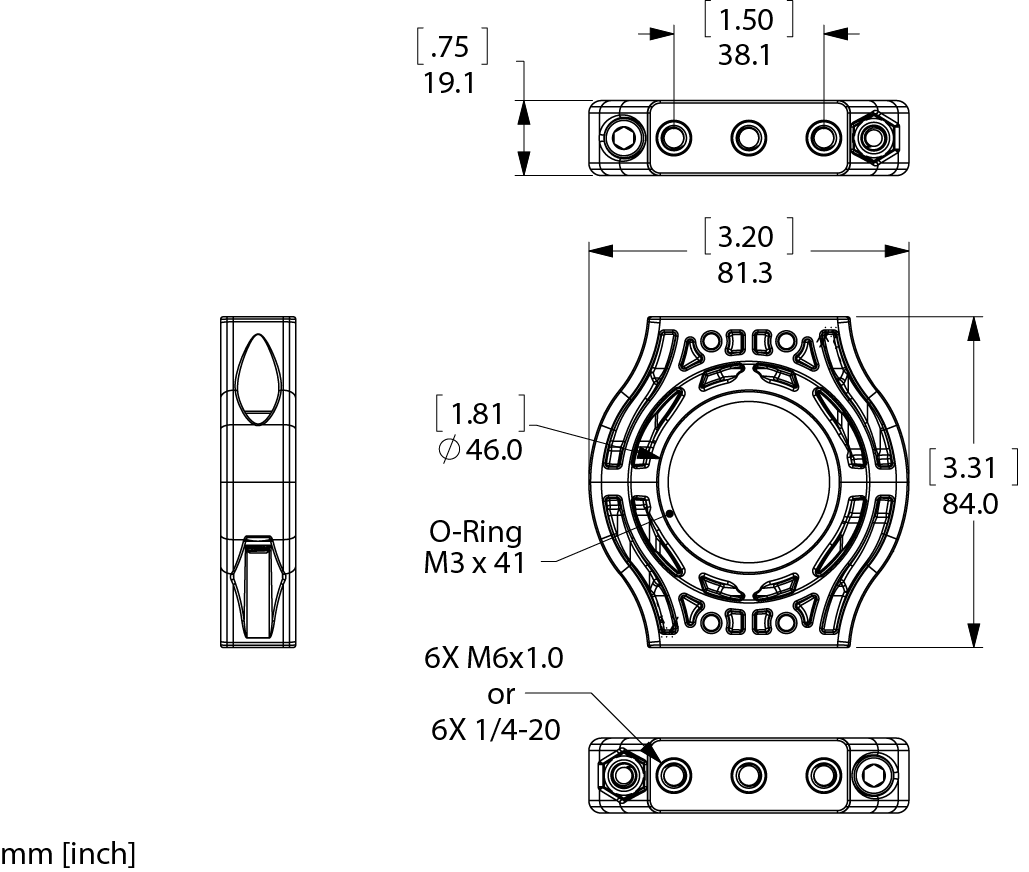

ML-DMC-TI-M & ML-DMC-TI-I

 Line Drawing

Metric: 2-piece mounting bracket with Titanium 6 mm thread size inserts.

Imperial: 2-piece mounting bracket with Titanium 1/4-20″ thread size inserts. Used with all Multi SeaLite family of Halogen lights, LED Multi SeaLite Matrix, and SeaLite Sphere 000 Series.

---



SLS-DMC-TI-M & SLS-DMC-TI-I

 Line Drawing

Metric: 2-piece mounting bracket with Titanium 6 mm thread size inserts.

Imperial: Titanium 1/4-20″ thread size inserts. Used with SeaLite Sphere 100 and 150 series lights.

---



LBRKT

 Line Drawing

Mounting bracket used on the LED SeaLite, Multi SeaCam, and SeaLite Lumos. Adapts to hole pattern of the SLS bracket series.

---



YMB-Old

 Line Drawing

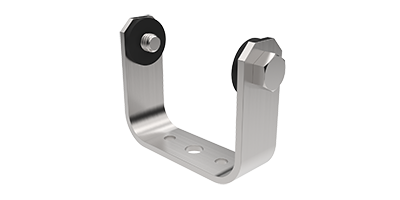

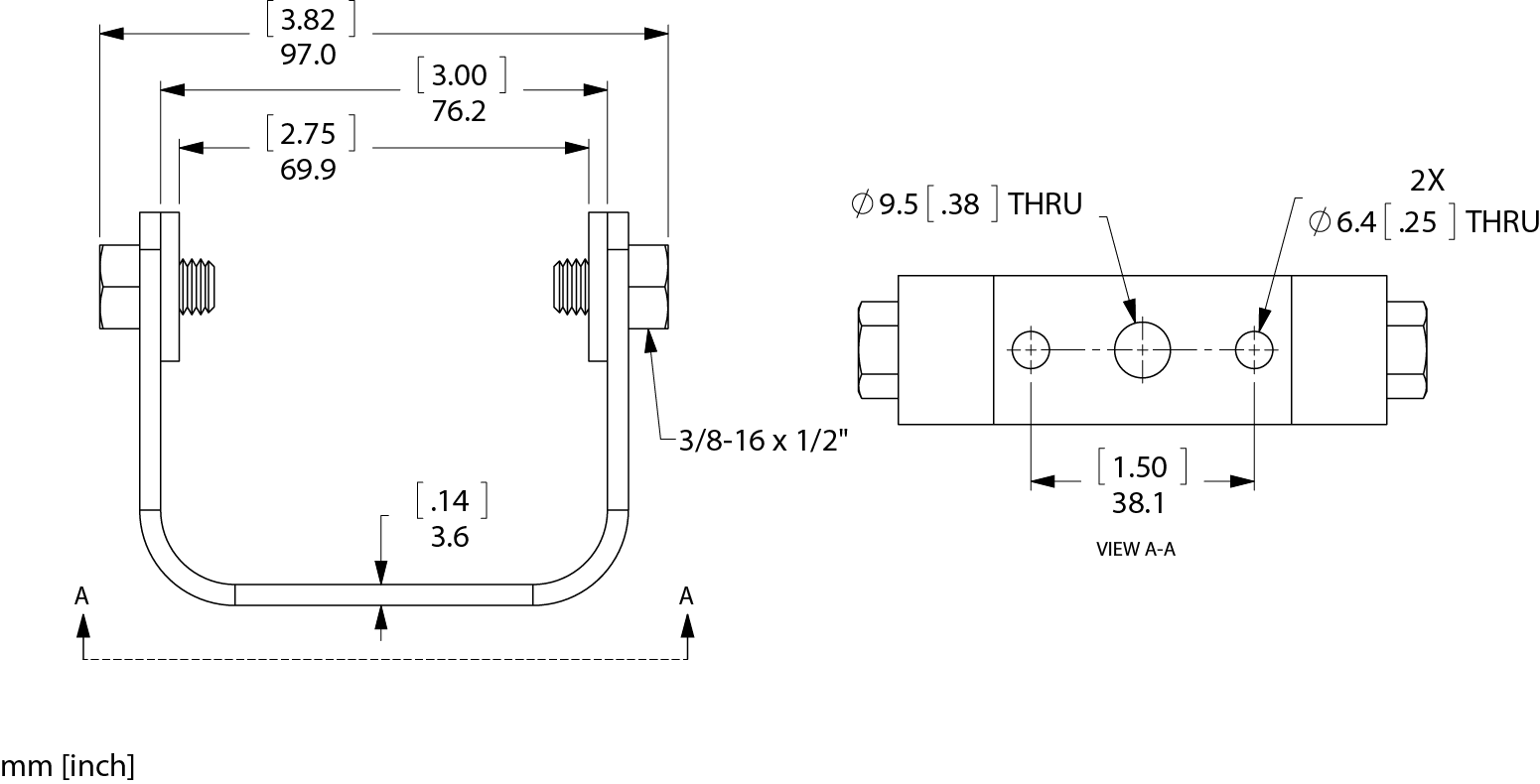

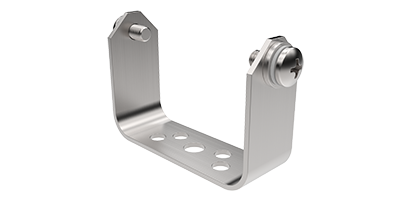

Yoke mounting bracket used with Multi SeaLite series lights (except wet/dry model and Multi SeaLite 3).

---



YMB-New

 Line Drawing

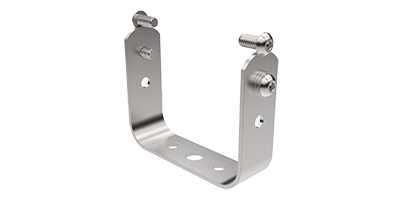

Yoke mounting bracket used with the new 2-piece mounting bracket (ML-DMC-Ti/M and SLS-DMC-Ti-I/M).

---



YMB-Small

 Line Drawing

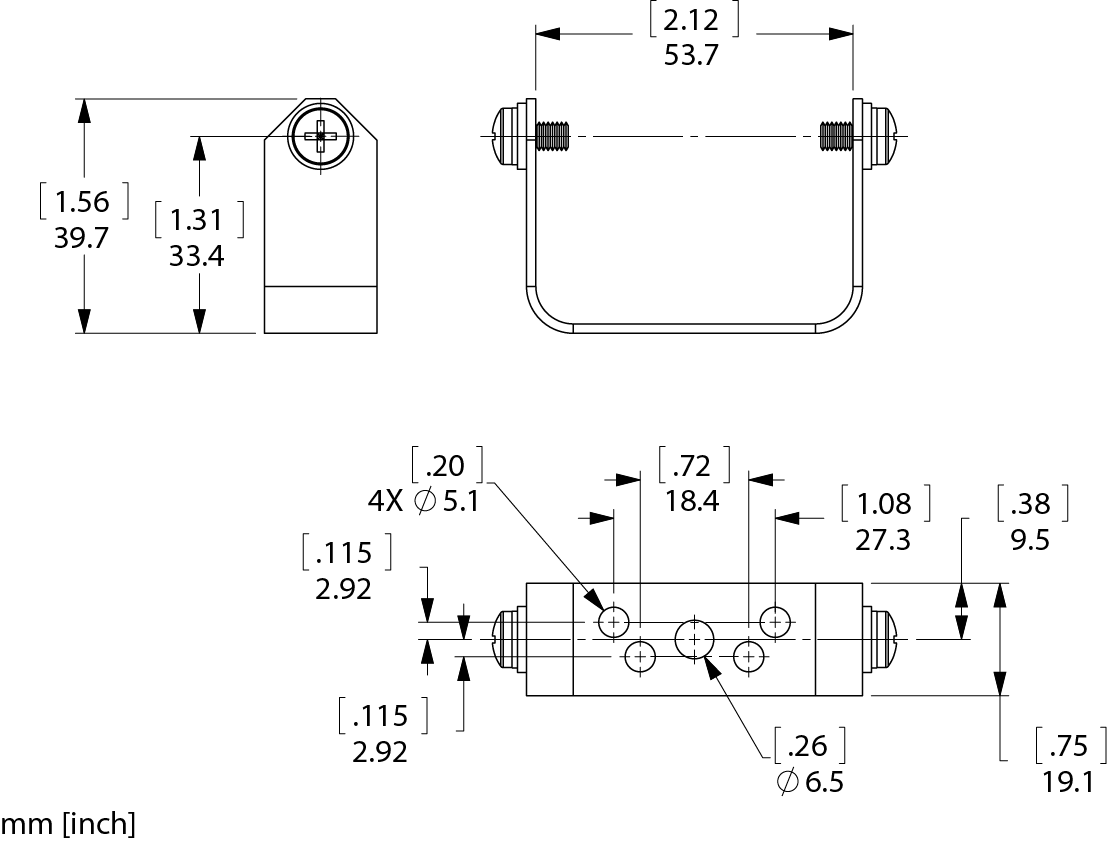

Small yoke mounting bracket used in combination with the UBSC bracket.

---



UHMB

Universal helmet mounting bracket used with most DSPL diver cameras and lights.

---



KM3755-BRKT

 Line Drawing

KB-37 & 77 universal helmet mounting bracket used with most DSPL diver cameras and lights.

---

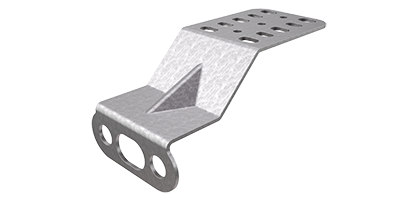

KM17-BRKT

L-shaped helmet mounting bracket used with Nano SeaCam and remote SeaLite 6.

---
