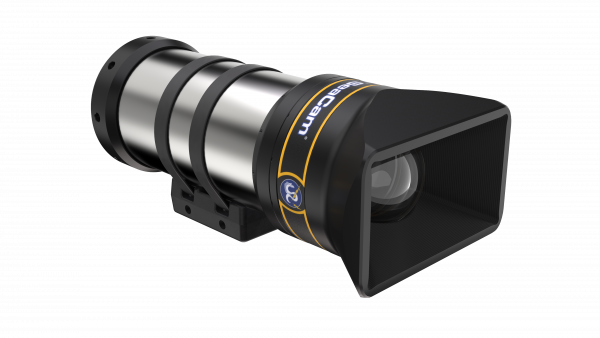

Optim SeaCam
The Optim SeaCam provides a unique tool for scientists, subsea explorers, and film makers combining superb 4K imaging capability with familiar controls, flexible integration options, and an extremely rugged design.
Ideal for real-time viewing in 4K, the Optim SeaCam features an extended zoom range and a 350mm minimum object distance at full telephoto that makes for stunning close-up images and brings out the smallest details. Familiar VISCA controls make the Optim an obvious upgrade path from legacy HD systems while being sized to fit almost any platform from medium inspection class vehicles to large manned submersibles.
The Optim SeaCam has already proved itself by being the first 4K camera to dive to the deepest points of the oceans, Challenger Deep in the Marianas Trench, more than 10km down. It is the optimal camera for discovery, documentation, and storytelling.
Key Features
The IP Optim SeaCam features:
- 4K UHD and multiple HD formats over SDI
- 78° horizontal FOV at full wide
- Proprietary corrector optics
- 15.5x optical zoom, 24x lossless digital zoom
- Coax, fiber, and exclusive FleXlink output options
- Titanium housing depth rated to 6km, 11km option
Resources:
Product Drawing - IGS (.zip - 3.2 MB)
Product Drawing - SLDPRT (.zip - 3.3 MB)
Product Drawing - STEP (.zip - 4.2 MB)
Product Drawing - X_B (.zip - 1.1 MB)
