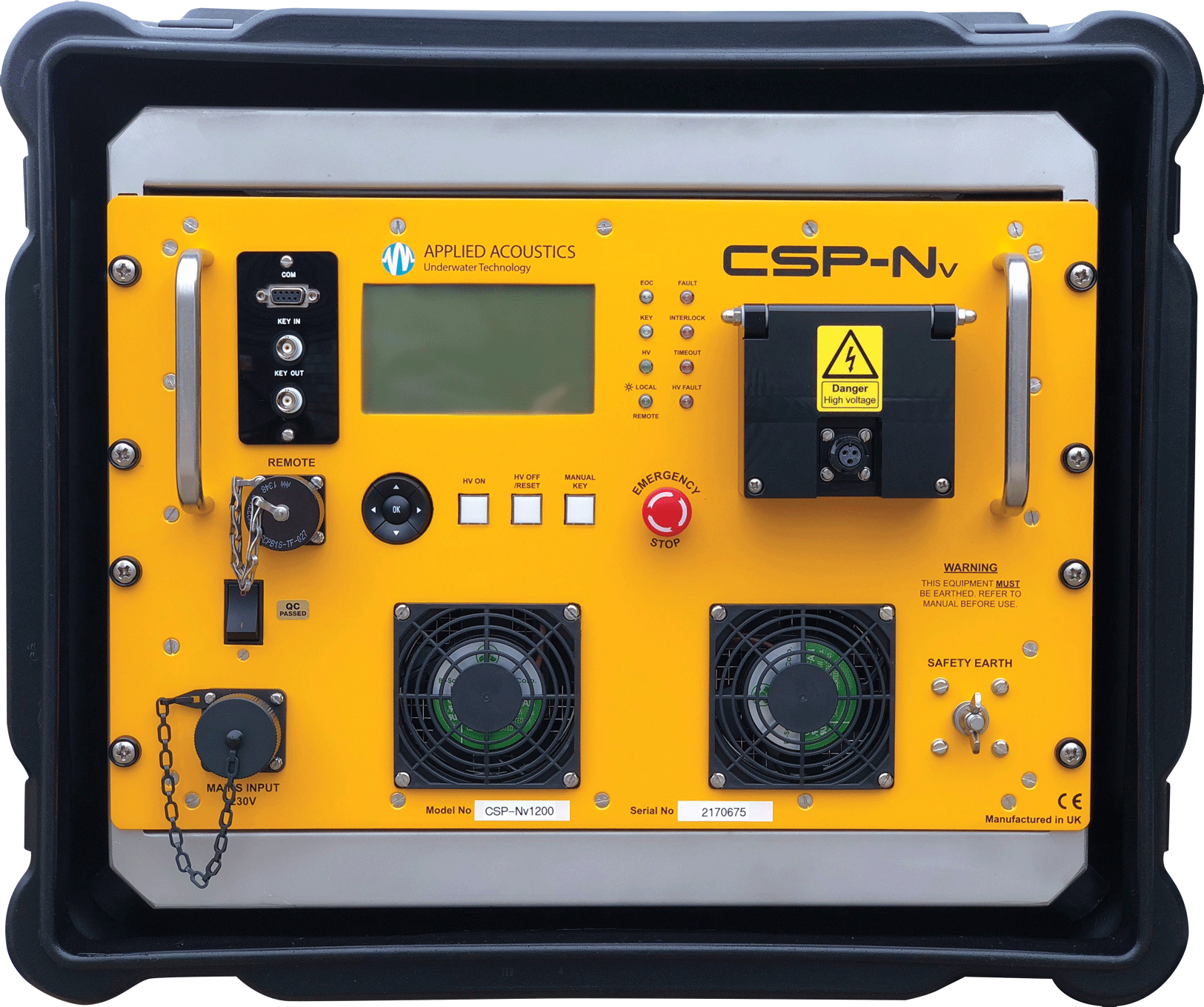

CSP-Nv (Reverse Polarity)

Output, per shot, 1200J or 2400J

The CSP-Nv incorporates microprocessor control and configuration for greater flexibility and reliability, whilst retaining a fail-safe logic design. It is the driving force behind applied acoustics’ Dura-Spark range of sound sources, and is also suitable for use with the S-Boom and single plate boomer systems.



Key Features

  • Microprocessor configuration and control.
  • Intuitive user interface, with LCD display and LED indicators.
  • Enhanced operator system feedback
  • User programmable ‘soft start’
  • Master / Slave Key Support
  • Additional safety/protection features
  • Programmable voltage technology allows operator tuning to suit application
  • All settings externally selectable
  • High current and voltage solid state (semi- conductor) discharge method
  • Debug log and diagnostics.
  • Meets EC emissions regulations enabling interference-free field use
  • Supplied in robust transit case, with HV junction box (HVJ3004) and mains lead.



Applications

  • General coastal, river, canal or estuary survey
  • Hydrographic sediment investigation
  • Cable and pipeline route survey
  • High and ultra high resolution multi-channel survey
  • Geophysical windfarm site survey



Resources

 Data Sheet
