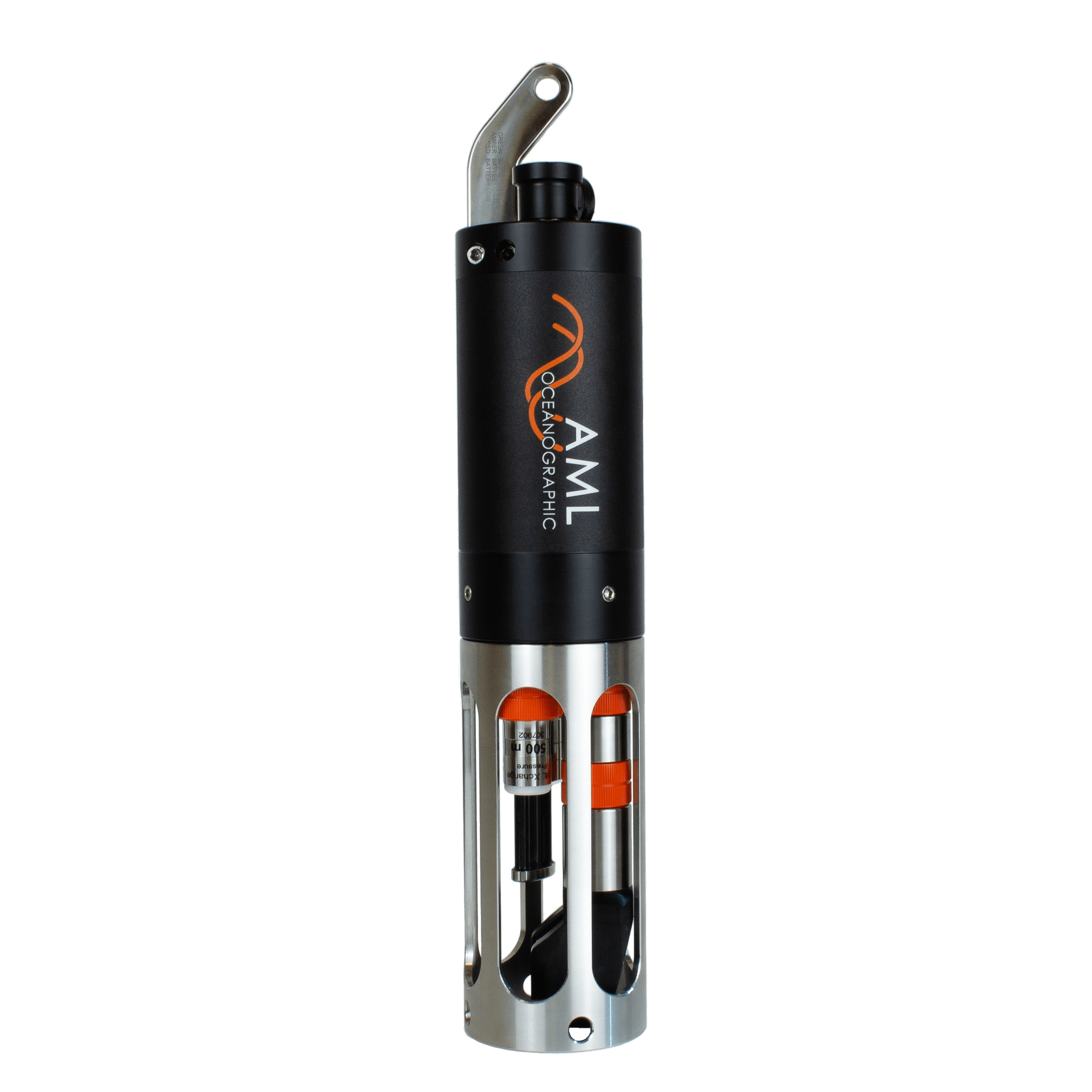

AML-3
The AML-3 series of instruments is a highly configurable family of multiparameter sondes designed for a wide range of data collection applications. The ‘3’ designation refers to the number of sensors that may be simultaneously installed on the instrument’s endcap. Additional sensors may be connected externally, allowing up to 5 sensors in total.
Typical Configurations include:
- Sound Velocity Profiling (SVP)
- Sound Velocity and Turbidity Profiling (SVP Tu)
- Conductivity Temperature & Depth (CTD)
- Sound Velocity / Conductivity Temperature & Depth (SVCTD)
The AML-3 comes in the AML-3 LGR and the AML-3 RT. While nearly identical in size and form factor, the two configurations differ in a few key features which specialize them for their respective applications:
- The LGR designation (ie. AML-3 LGR) are self-powered via a rechargeable internal battery and have a mechanical on/off switch adjacent to their shackle. These instruments are most commonly used for multiparameter profiling applications and internally log sensor measurements and transfer data postdeployment.
- The RT designation (ie. AML-3 RT) stream data while in-situ (though they have the ability to internally record data as well). Power and communication to these instruments is facilitated via a waterproof connector located adjacent to the shackle.
*Sensor-heads are ordered separately.
