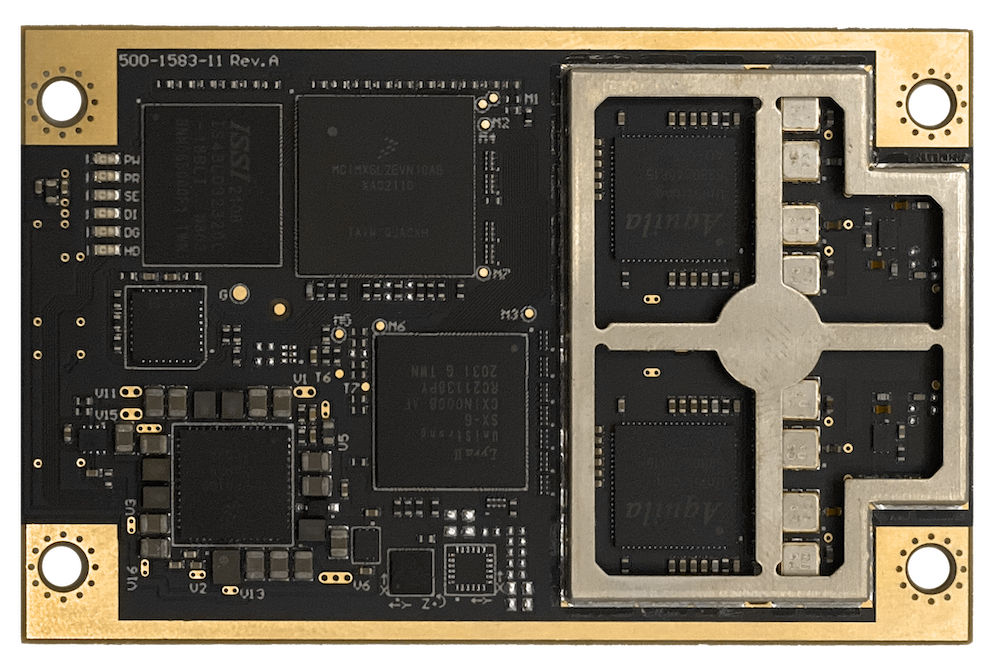

Vega 34 OEM Board



Develop sophisticated machine control and navigation solutions in a world full of complex dynamic environments.

The Vega 34 is one of our most advanced GNSS heading and positioning boards.

The Vega 34 uses dual antenna ports to create a series of additional capabilities including fast, high-accuracy heading over short baselines, RTK positioning, onboard Atlas L band, RTK-enabled heave, low-power consumption, and precise timing.



Scalable Solutions

With the Vega 34, positioning is scalable and field upgradeable with all Hemisphere software and service options. Utilize the same centimeter-level accuracy in either single frequency mode, or employ the full performance and fast RTK initialization times over long distances with multi-frequency multi-constellation GNSS signals. High-accuracy L band positioning from meter to sub-decimeter levels available via Atlas correction service.



Ease of Migration

Leverage the industry standard form factor for easy upgradeability from other manufacturers’ modules.



Key Features

  • Extremely accurate heading with long baselines
  • Available multi-frequency position, dual-frequency heading supporting GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, and L band (Atlas®)
  • Atlas® L band capable to 4 cm RMS
  • Athena™ GNSS engine providing best-in-class RTK performance
  • Excellent coasting performance
  • 5 cm RMS RTK-enabled heave accuracy
  • Strong multipath mitigation and interference rejection
  • New multi-axis gyro and tilt sensor for reliable coverage during short GNSS outages





The Vega 34 is an Atlas capable product



Resources:

 Data Sheet

 Integrator's Guide



Related Products:

OEM Development Kit ST

Atlas
